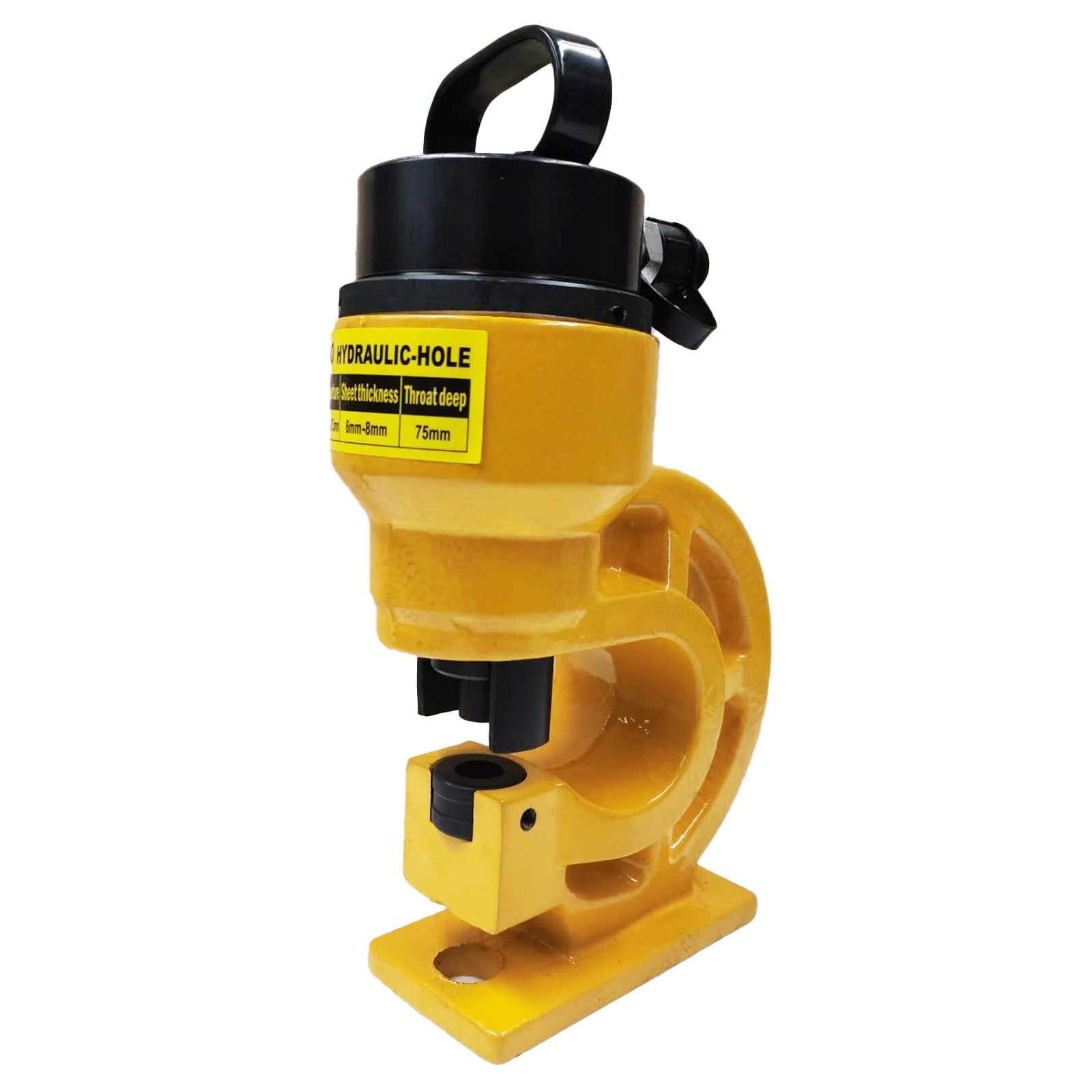

Hydraulic Hole Punching Tools Puncher 31T CH-60
SPECIFICATIONS
. Model: CH-60
. Output: 31T
. Configure mold: 3/8"(10.5mm), 5/8"(17mm), 1/2"(13.8mm), 3/4"(20.5mm)
. Max thickness:
- Iron plate: 6mm
- Copper/aluminum row: 10mm
. Throat depth: 70mm
. Weight: 17.6kg
FEATURES

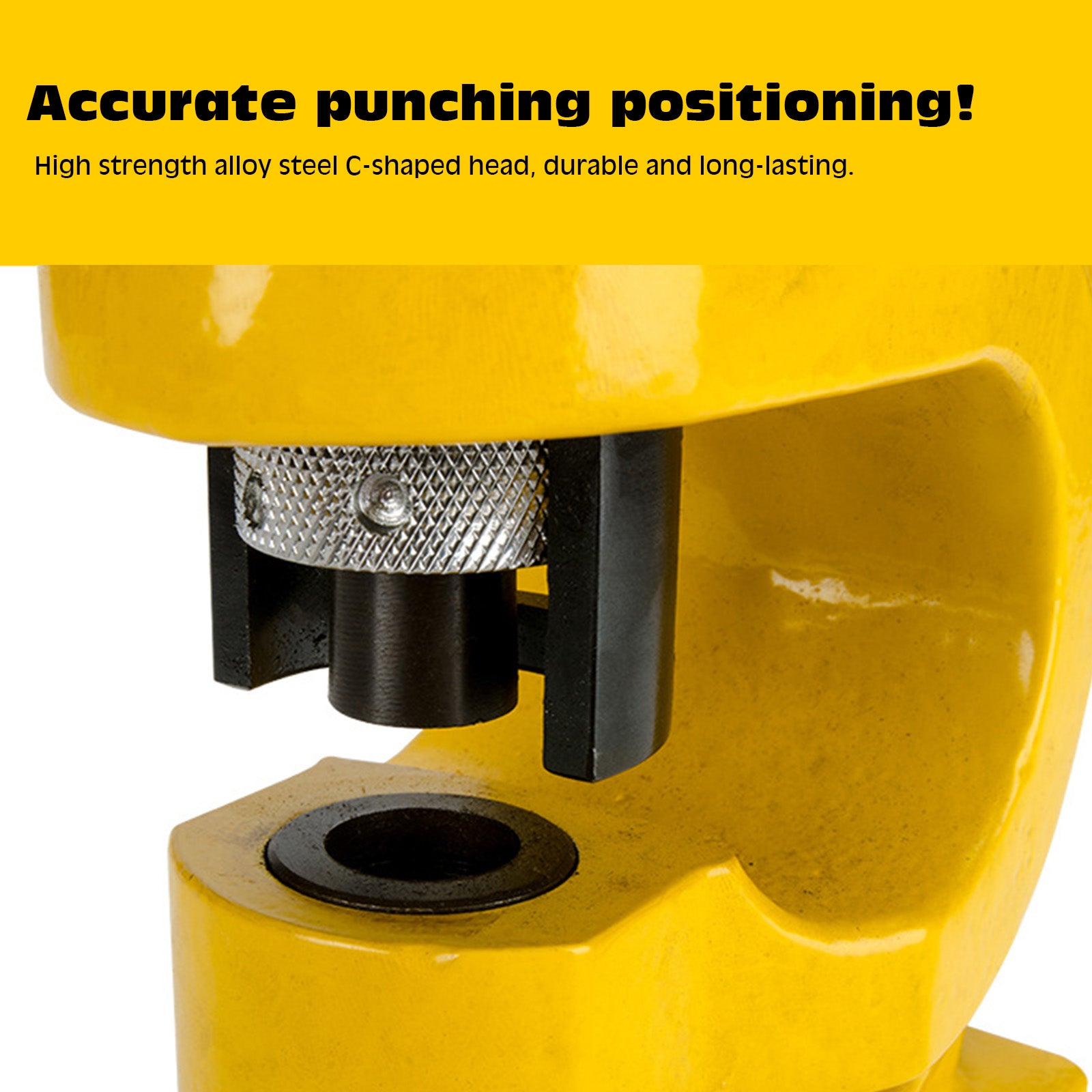

· High-strength alloy steel C-shaped working head, durable.
· Single-action design, high-strength spring return.
· The punching die is made of high carbon tungsten alloy steel and is suitable for punching low carbon steel, iron soft plates, copper rows, aluminum rows and other metals.
· The punching position is accurate and the blanking is burr-free.

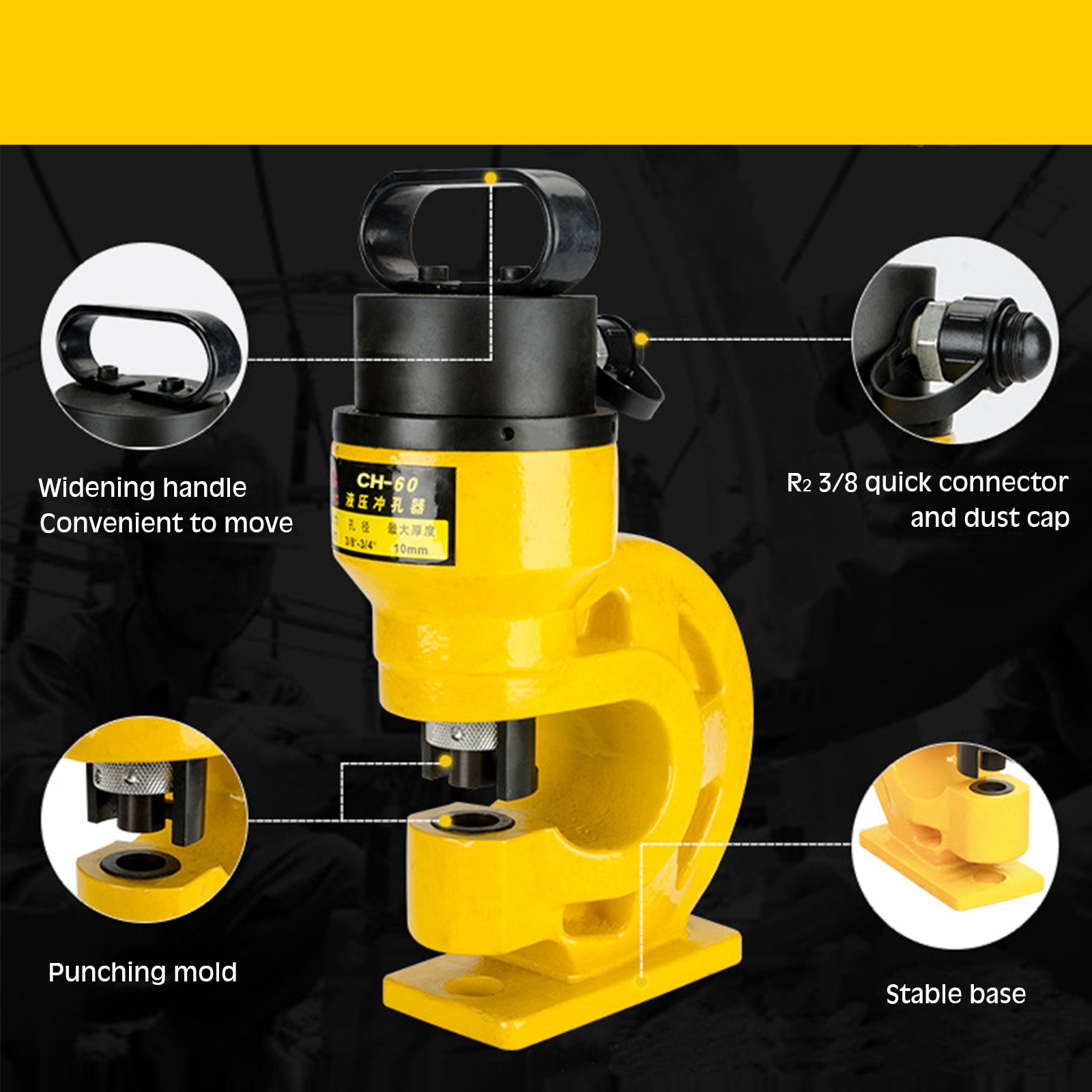

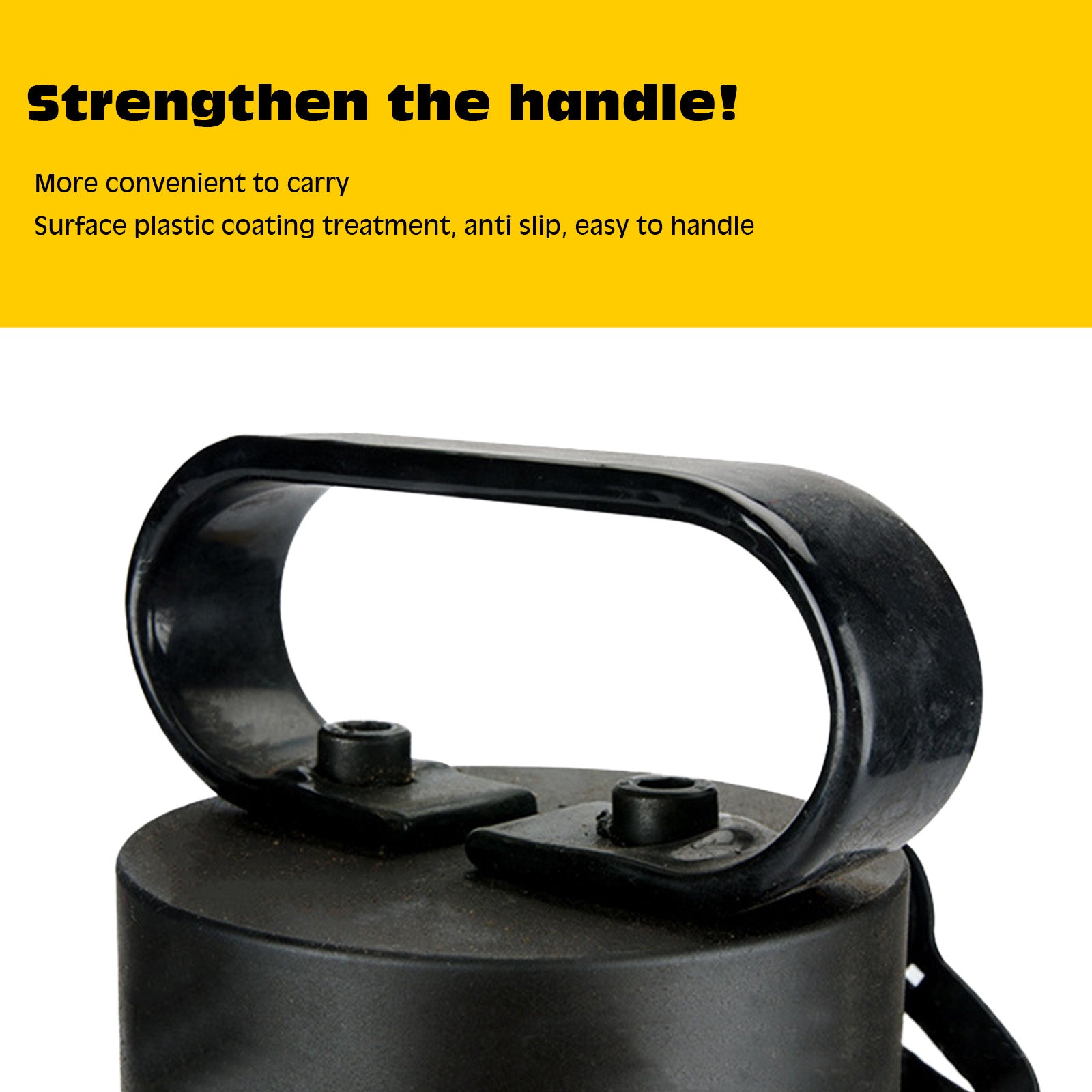

· Portable handle for easy transportation.

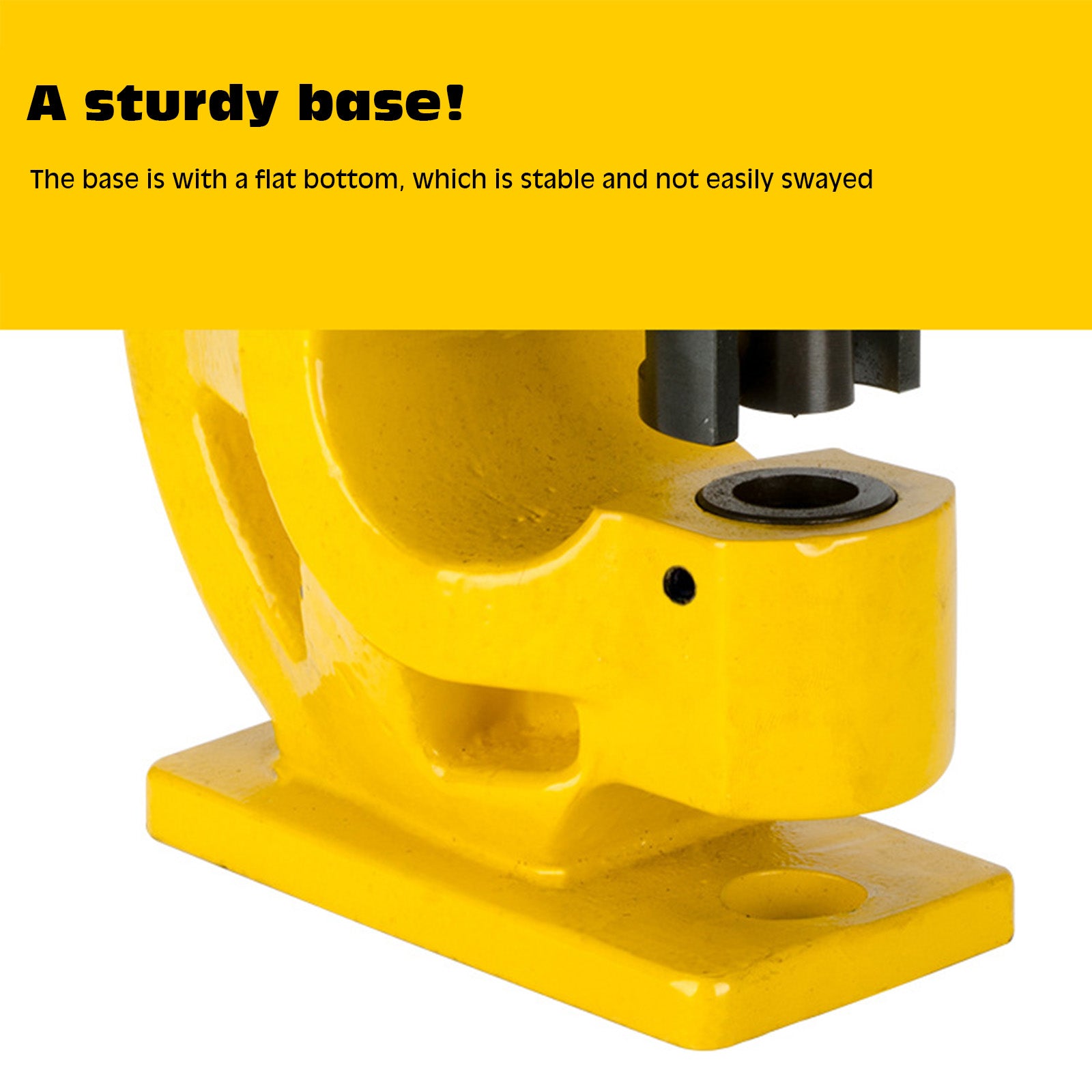

· The base is designed with a flat bottom, which is stable and not easy to tip over.

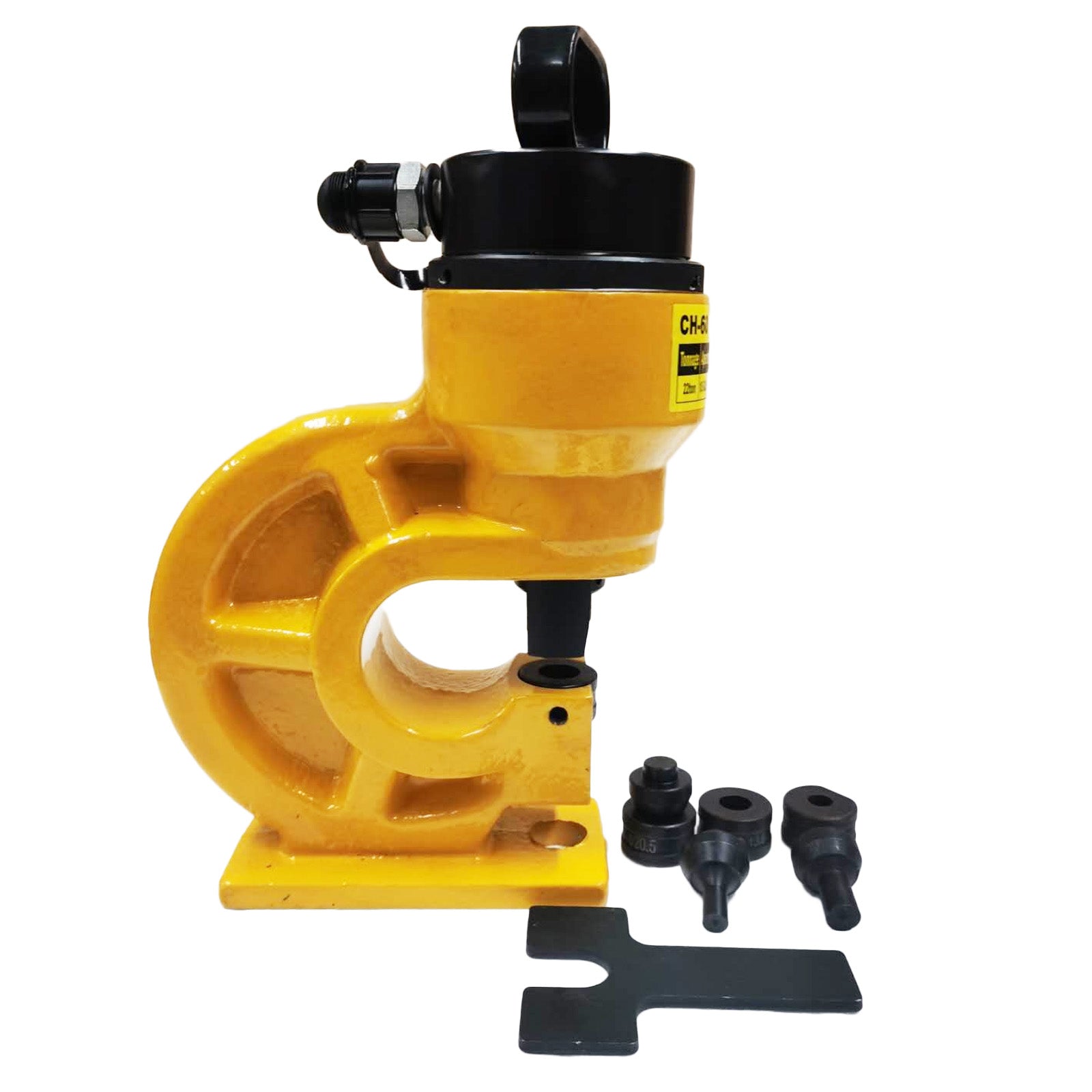

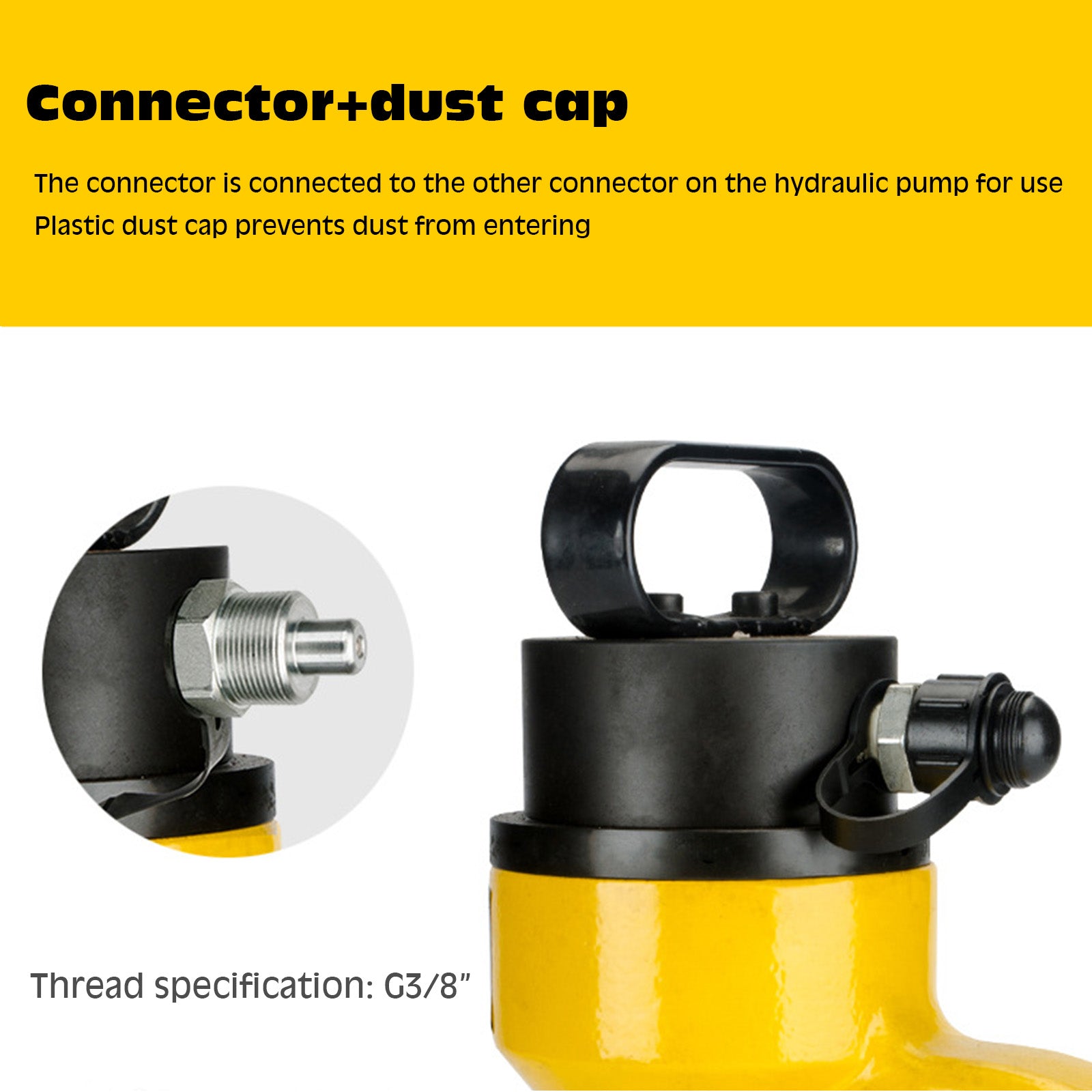

· Equipped with R2 3/8 quick connector and dust cap, 4 sets of round molds.
. Can be connected to various 70obar pressure hydraulic pumps.
. Products and mold accessories are placed in a box.
