ZUPPER Battery Powered Mechanical Press Tool Kit 32kN MP-3240
The MP-3240 is the newest addition of 32kN press tool with mechanical system, it is faster and efficient way to join metal pipe and plastic pipe.
FEATURES
. The tool is easier to do maintenance
. With 180° rotatable head
. Enclosed screw structure prevents sand and dust
. Brushless motor with longer motor life and more Run-time
. High efficiency screw drive, shorter pressing time
. OLEO display shows battery percentage.press cycles, fault code.maintenance note
. Warranty: 2 years OR 20000 uses since the date of purchasing or manufacture.(Warranty service in Australia)
SPECIFICATION
(Different type of Jaws can be used for pipes of different materials)
. Battery: 18V Li-ion 2.0Ah
. Battery Charger: AC 100V-240V 50-60Hz
. Charging time: Approx.40mins
. Output: 32kN
. Tool Size: 399x132x84mm
. Stroke: 40mm
. Weight: Approx.3.5kgs(tool with battery)
. Pressing cycle time: 4~8s

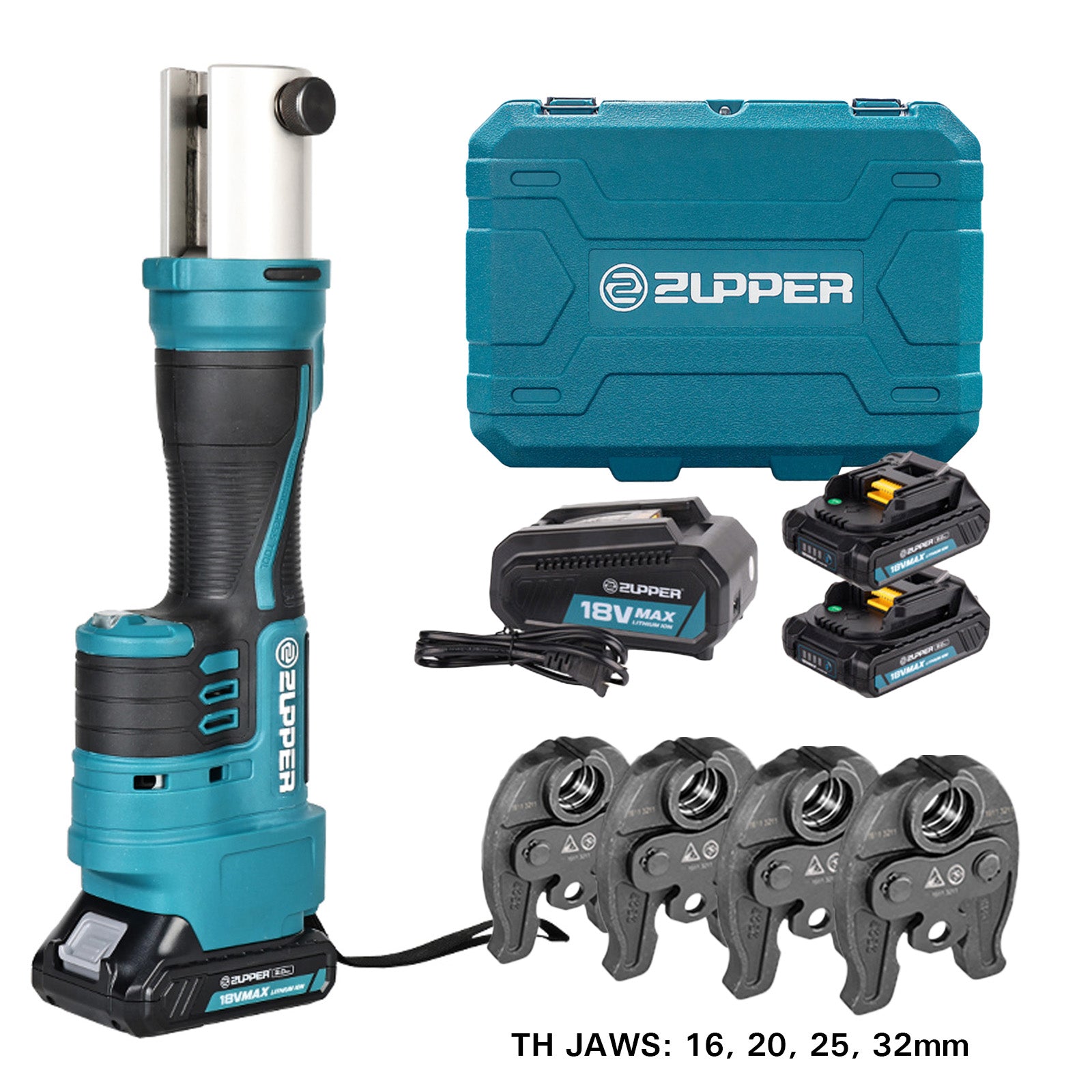

PACKING
. MP3240 + Case + ?Jaws
. Size of jaws:
- VAU 15, 20, 25, 32mm
- TH 16, 20, 25, 32mm
- If you don’t need 4pcs jaws, please tell us what size jaws you need.
VAU jaws suit the following pipe systems;
Auspress
BPress
Elson Press
Ezi Press
Kem Press
Met Press
PSC Press
Viega
TH jaws suit the following pipe systems:
Bushpex
Flowpex
Pexal
Procrimp
PSC Pex
Reflex
WARRANTY:
. Basic warranty period 2-YEAR/20000times Limited Warranty(Warranty service in Australia)
. What is covered?
This tool is operated for the designated purpose and maintained normally. Our company provides 24 months or 20000 uses since the date of purchasing or manufacture. If a valid receipt is not available, the 2 year limited warranty period begins from the date of manufacture on originally purchased equipment. ZUPPER TOOLS or authorized after-sales service center will repair the tools in free charge.
. What is not covered?
1. Any normal noise, vibration, discoloration, stains, etc. caused by natural wear and tear. (For example, surface wear after crimping, the surface of the cutting blade is worn, scratched, etc. after cutting.
2. Any malfunction caused by foreign objects (commonly found in sand, iron filings, water vapor, etc.) entering the tool (commonly seen in motors or the circuit board is burnt out.)
3. Any damage caused by the use of low-priced and inferior accessories. (For example, using molds, blades that do not meet our company's standards batteries, etc.)
4. Any damage caused by improper carrying, transportation, or storage. (For example, being exposed to sunlight and rain, soaking in water, gas liquid corrosion)
5. Any product that has been disassembled repaired, replaced or modified at will.
6. Any damage caused by improper use, exceeding the scope of tool use, and not following the instructions for use and maintenance.
. The warranty period for the battery and charger are different from the basic warranty period mentioned above:
1. The battery is a consumable part. The warranty period for the original battery of the ZUPPER tool is 12 months.
Lithium batteries exhibit self-consumption, which the maximum storage period for fully charged storage is 12 months, and lithium batteries need to be fully charged every 6 months.
2. A lithium battery due to prolonged storage causing battery loss and failure is not covered by the warranty.
3. The charger provides a warranty period of 12 months.
